Branch crusher/Vine wood crusher
wood crusher suitable for garden branches
What is a wood crusher?
Wood crusher is a new type of ideal equipment for producing sawdust. It has added a side feed port and slicing device to the original foundation, which can convert larger diameter round wood, square wood, leftover materials High fiber stem raw materials such as veneer, building formwork, corn cob, bark, leaves, branches, etc. are processed into sawdust in one go, which has the advantages of low investment, low energy consumption, high productivity, and good economic benefits.
Table of Contents
Wood crusher parameters table
Model | FD-6130 | FD-6145 |
Knife roller disc diameter | 300MM | 500MM |
Equipped with power | 32HP | R4105ZP |
Number of blades | 3 moving blades and 1 fixed blade | 6 moving blades and 1 fixed blade |
feed opening | 300*200mm | 450*380mm |
Discharge system | Free 360 degree rotation and automatic spraying discharge | Free 360 degree rotation and automatic spraying discharge |
Capacity | 1-2t/h | 3-5t/h |
Walking form | Foldable hand jack, trailer type | Foldable hand jack, trailer type |

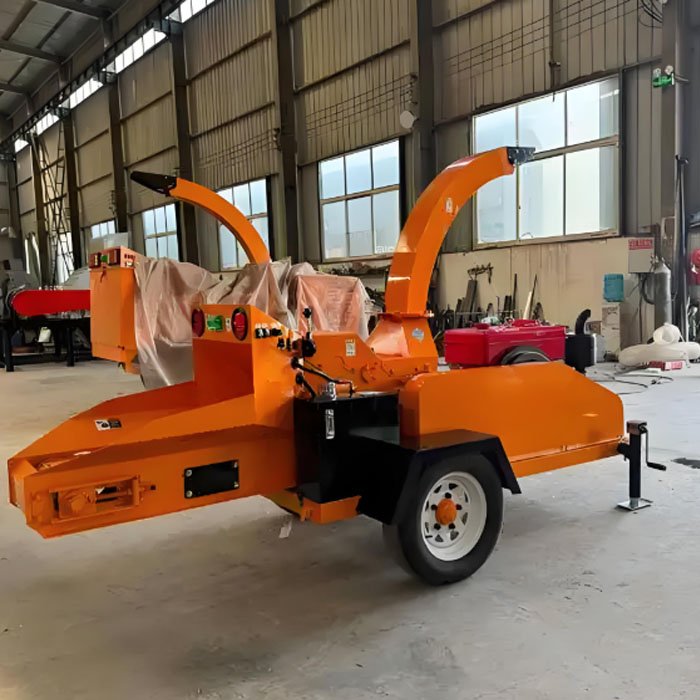

![Mobile branch crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/图4-1.jpg)
Mobile branch crusher
Video operation effect of tree branch crusher
What are the advantages of a tree branch crusher?
- Convenience: The tree branch crusher can crush fluffy tree branch materials, making it a good choice for both clearing and returning them to the field after crushing.
- Environmental protection: Most of the crushed tree branches are made of wood chips, which can directly reduce the occupation of land resources and also increase soil organic matter after crushing.
- Safety: Branch crusher is often a closed space, where all materials are crushed and sprayed out in the crushing bin, greatly improving the safety of users.
The working principle of a wood crusher
The branch crusher mainly consists of a chip cutting device, a crushing device, and a fan; Chip cutting device organism (divided into upper body, middle body, and lower body), rotor, and cutter head; The crushing device consists of a crushing chamber and a crushing knife (consisting of a 7-type knife, a 1-type knife, and a centrifugal knife); The fan consists of a fan, a dust collector, and a dust collector.
What are the characteristics of a wood crusher?
1、Even and effective crushing of materials in the crushing chamber can achieve sufficient and effective coarse and fine crushing
2、High yield, low energy consumption, high efficiency, and uniform discharge.
3、When using this device, it has low noise, simple operation, and convenient maintenance
4、Reasonable structure, convenient movement, automatic feeding, sturdy and reliable features
![Branch crusher discharge port](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/树枝机配图2.jpg)
Branch crusher discharge port
![Branch crusher feed inlet](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/树枝机配图1.jpg)
Branch crusher feed inlet
![Branch crusher moving wheel](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/树枝机配图3.jpg)
Branch crusher moving wheel
Scope of use of sawdust crusher
Wood grinder is widely used in machine-made charcoal factory, Foxiang factory, Engineered wood factory, biological power plant, Paper mill sawmill, feed factory, breeding farm, mushroom mushroom base, landscaping project, furniture factory, and wood processing

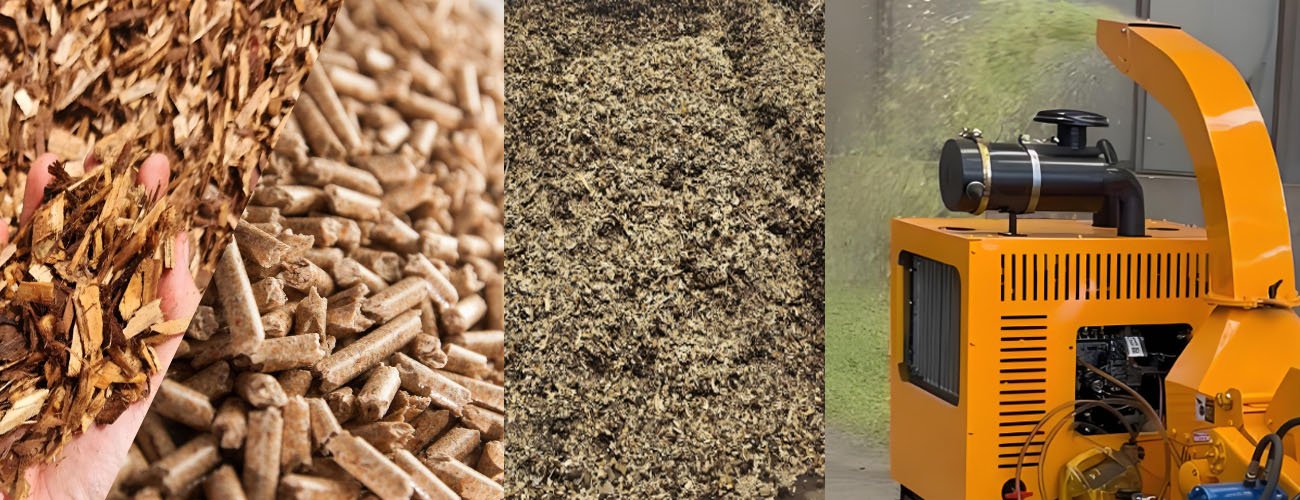

![Material picture of wood crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/图12.jpg)
![The discharge effect of wood crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/图13.jpg)
Maintenance and upkeep of wood crusher
1. The bearings of the host bear all the load of the machine, so good lubrication has a great impact on the bearing life, which directly affects the service life and operating rate of the machine. Therefore, it is required that the injected lubricating oil be clean and sealed well.
2. Each fastening screw is prone to loosening and must be checked regularly. If there is any looseness, it should be tightened in a timely manner
3. Pay attention to checking the wear level of easily worn parts and promptly replace worn parts.
4. Regularly add lubricating oil to the friction position to ensure mechanical performance and lifespan.
5. If the bearing oil temperature rises, it should be stopped immediately to check the cause and eliminate it,
6. If there is any impact sound during the operation of the rotating gear, it should be immediately stopped for inspection and eliminated
7. After the machinery is not in use, it should be placed indoors and the sawdust inside the machinery should be cleaned to avoid affecting future use and production.
![Wet and dry dual-purpose crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/图3.jpg)
Wet and dry dual-purpose crusher
![Mobile wood crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/使用配图4.jpg)
Mobile wood crusher
![Small wood crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/图7-1.jpg)
Small wood crusher
![Medium size wood crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/图6-2.jpg)
Medium size wood crusher
![Large wood crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/图8-2.jpg)
High power wood crusher
How to choose a wood crusher?
Our factory produces two types of tree branch pulverizers: a fixed operating tree branch pulverizer and a mobile garden tree branch pulverizer. The fixed operating tree branch pulverizer is suitable for fixed operations in a small range. It is driven by a motor and equipped with an environmentally friendly dust removal device, with a large output, stable work, small floor area, and energy conservation and environmental protection.
The mobile garden branch grinder is applicable to the departments of garden, forestry, road tree maintenance, parks, golf courses, etc. It is mainly used to crush various branches cut from pruned trees, which can be used as mulch, garden bed base, Organic fertilizer, edible fungi, biomass power generation, and can also be used to produce high-density boards, chipboards, Pulp and paper industry, etc. After crushing, it can be directly sprayed into the transportation vehicle. This garden specific garden branch crusher uses a diesel engine as the power, which can crush branches anytime and anywhere, making it easy to move.
![Preview of Wood Crusher Workshop](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/图11.jpg)
![Finished product of tree branch crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/图9-1.jpg)
Austrian customer ordering
![Whole vehicle delivery](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/图10-2.jpg)
Canadian customer orders wood crusher
