What is a tree branch shredder?

shredder for branches is a new type of ideal equipment for producing sawdust. It has added a side feed port and slicing device to the original foundation, which can convert larger diameter round wood, square wood, leftover materials High fiber stem raw materials such as veneer, building formwork, corn cob, bark, leaves, branches, etc. are processed into sawdust in one go, which has the advantages of low investment, low energy consumption, high productivity, and good economic benefits.

Get a free quote

Phone/WhatsApp contact

shredder for tree branches parameters table
Video operation effect of leaf branch shredder
The working principle of a branch shredder
What are the characteristics of a branch shredder machine?
Scope of use of electric branch shredder
Maintenance and upkeep of garden branch shredder
How to choose a industrial branch shredder?

shredder for tree branches parameters table

Model	FD-6130	FD-6145
Knife roller disc diameter	300MM	500MM
Equipped with power	32HP	R4105ZP
Number of blades	3 moving blades and 1 fixed blade	6 moving blades and 1 fixed blade
feed opening	300*200mm	450*380mm
Discharge system	Free 360 degree rotation and automatic spraying discharge	Free 360 degree rotation and automatic spraying discharge
Capacity	1-2t/h	3-5t/h
Walking form	Foldable hand jack, trailer type	Foldable hand jack, trailer type

Branch crusher

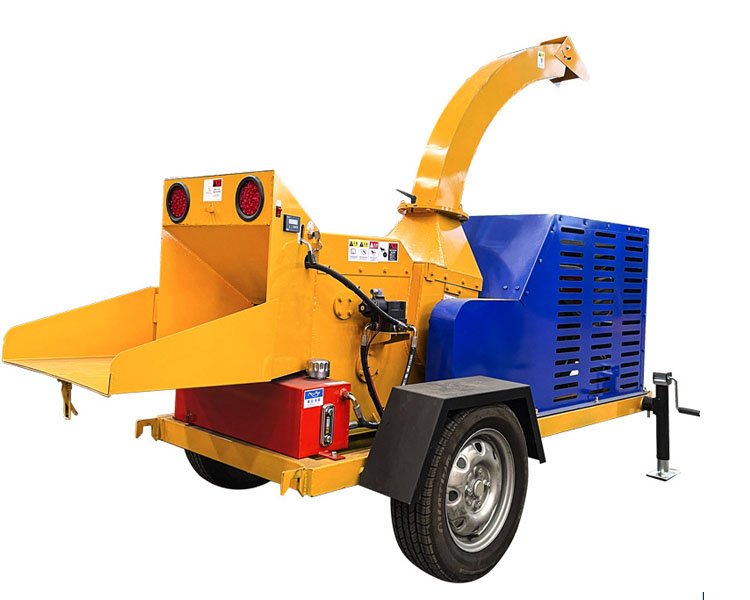

Mobile branch crusher

Video operation effect of leaf branch shredder

What are the advantages of a branches shredder?

Convenience: The tree branch crusher can crush fluffy tree branch materials, making it a good choice for both clearing and returning them to the field after crushing.
Environmental protection: Most of the crushed tree branches are made of wood chips, which can directly reduce the occupation of land resources and also increase soil organic matter after crushing.
Safety: Branch crusher is often a closed space, where all materials are crushed and sprayed out in the crushing bin, greatly improving the safety of users.

The working principle of a branch shredder

The branch shredder electric mainly consists of a chip cutting device, a crushing device, and a fan; Chip cutting device organism (divided into upper body, middle body, and lower body), rotor, and cutter head; The crushing device consists of a crushing chamber and a crushing knife (consisting of a 7-type knife, a 1-type knife, and a centrifugal knife); The fan consists of a fan, a dust collector, and a dust collector.

What are the characteristics of a branch shredder machine?

1、Even and effective crushing of materials in the crushing chamber can achieve sufficient and effective coarse and fine crushing
2、High yield, low energy consumption, high efficiency, and uniform discharge.
3、When using this device, it has low noise, simple operation, and convenient maintenance
4、Reasonable structure, convenient movement, automatic feeding, sturdy and reliable features

Branch crusher discharge port

Branch crusher feed inlet

Branch crusher moving wheel

Scope of use of electric branch shredder

electric tree branch shredder is widely used in machine-made charcoal factory, Foxiang factory, Engineered wood factory, biological power plant, Paper mill sawmill, feed factory, breeding farm, mushroom mushroom base, landscaping project, furniture factory, and wood processing

Maintenance and upkeep of garden branch shredder

1. The bearings of the host bear all the load of the machine, so good lubrication has a great impact on the bearing life, which directly affects the service life and operating rate of the machine. Therefore, it is required that the injected lubricating oil be clean and sealed well.
2. Each fastening screw is prone to loosening and must be checked regularly. If there is any looseness, it should be tightened in a timely manner
3. Pay attention to checking the wear level of easily worn parts and promptly replace worn parts.
4. Regularly add lubricating oil to the friction position to ensure mechanical performance and lifespan.
5. If the bearing oil temperature rises, it should be stopped immediately to check the cause and eliminate it,
6. If there is any impact sound during the operation of the rotating gear, it should be immediately stopped for inspection and eliminated
7. After the machinery is not in use, it should be placed indoors and the sawdust inside the machinery should be cleaned to avoid affecting future use and production.

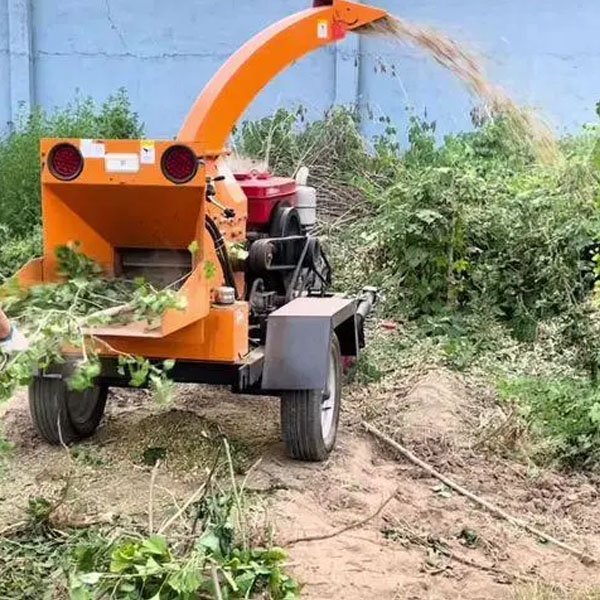

Wet and dry dual-purpose crusher

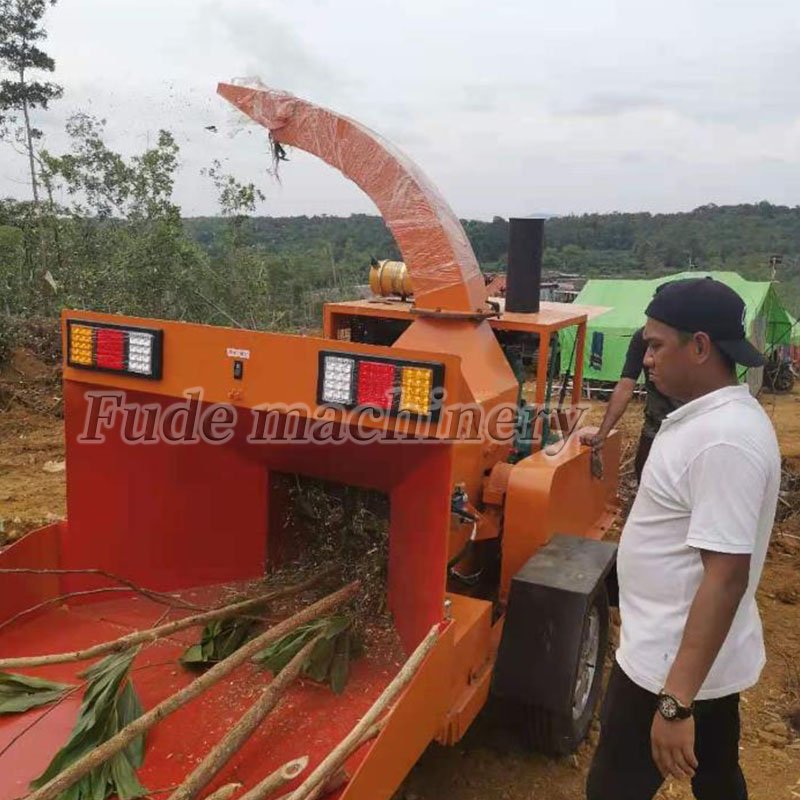

Mobile wood crusher

Small wood crusher

Medium size wood crusher

High power wood crusher

How to choose a industrial branch shredder?

Our factory produces two types of tree branch shredder machine : a fixed operating tree branch pulverizer and a mobile garden tree branch pulverizer. The fixed operating tree branch pulverizer is suitable for fixed operations in a small range. It is driven by a motor and equipped with an environmentally friendly dust removal device, with a large output, stable work, small floor area, and energy conservation and environmental protection.

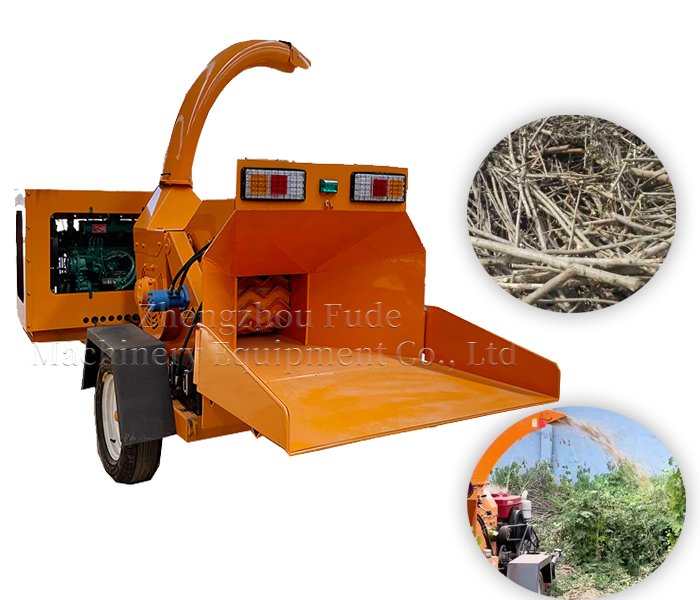

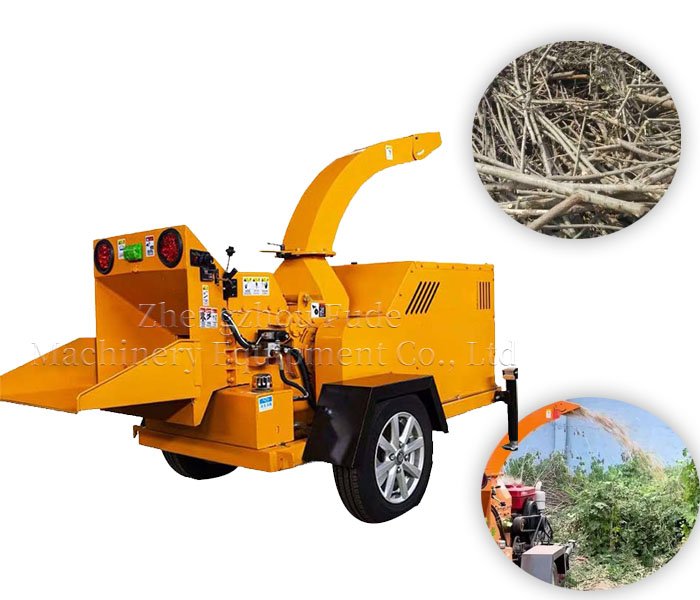

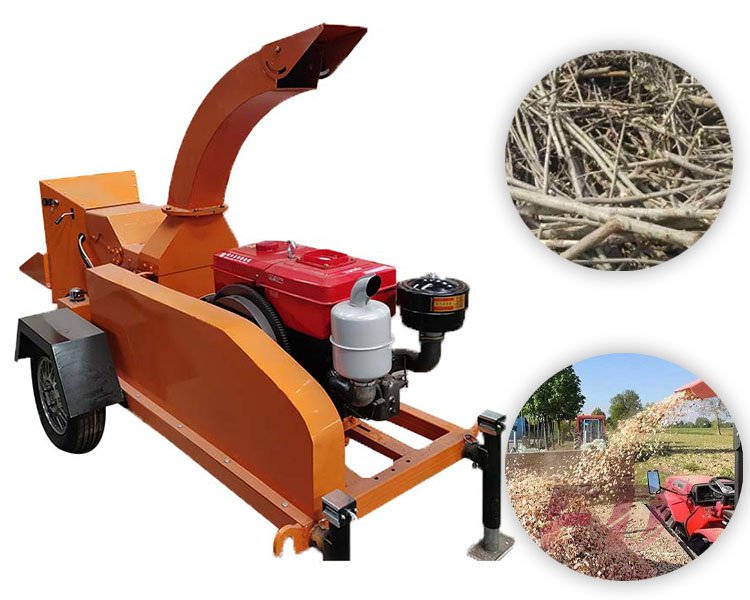

The mobile garden branch grinder is applicable to the departments of garden, forestry, road tree maintenance, parks, golf courses, etc. It is mainly used to crush various branches cut from pruned trees, which can be used as mulch, garden bed base, Organic fertilizer, edible fungi, biomass power generation, and can also be used to produce high-density boards, chipboards, Pulp and paper industry, etc. After crushing, it can be directly sprayed into the transportation vehicle. This garden specific garden branch crusher uses a diesel engine as the power, which can crush branches anytime and anywhere, making it easy to move.
