How thick wood can be processed by the wood cutting machine

Choosing the right wood chipper seems simple, until you face branches thicker than expected. Pick one too small, and work grinds to a halt. Pick one too big, and you waste money. Let’s clear up the confusion.

There’s no single answer; capacity varies hugely from small homeowner models (1.5-4 inches) to large industrial units (20+ inches). Always check the manufacturer’s “Maximum Capacity” rating, but know it’s often for ideal conditions (soft, straight wood).

Understanding what those capacity numbers really mean, and what factors influence actual performance, is crucial. As experts at Fude Machinery, manufacturing these machines for years, we want to help you match the chipper’s “appetite” to the wood you need to process. Getting this right saves you time, money, and keeps your operation running smoothly and safely.

Is There One Standard Answer for Chipper Thickness Capacity?

You see numbers advertised, but they seem all over the place. Is there one simple thickness most chippers can handle? Assuming a standard size can lead you to buy the wrong machine entirely.

No, there is no single standard thickness. Capacity depends entirely on the specific chipper’s model, design, power, and intended use, ranging from small electric units to massive industrial machines.

Here’s why capacity varies so much and what the ratings mean:

Why No Single Standard?

Wood chippers serve vastly different needs.

• Homeowners: Might only need to chip small branches from garden pruning (e.g., 1-3 inches).
• Landscapers/Arborists: Need to handle larger limbs and varying wood types (e.g., 6-12 inches).
• Forestry/Biomass: Must process large logs or whole trees efficiently (e.g., 15-20+ inches).
  Manufacturers like Fude Machinery design machines specifically for these different scales and applications. A small electric chipper just isn’t built like a heavy-duty diesel drum chipper.

Understanding “Maximum Capacity”

This specification, usually listed in inches or centimeters, refers to the largest diameter of fresh, relatively straight softwood the machine is designed to process under optimal conditions.

• The Caveat (Very Important!): This rating is often optimistic. Real-world capacity is usually less when dealing with:
  • Hardwoods: Oak, maple, or very dry wood require significantly more power to chip than pine or green branches. You might only achieve 70-80% of the max capacity with hardwoods.
  • Irregular Shapes: Forked branches or knotty wood might fit the opening but can jam or process poorly.
  • Dull Blades: Performance drops significantly as knives wear.

My advice: Treat the manufacturer’s max capacity as the absolute upper limit under ideal circumstances. Plan based on the typical wood you’ll encounter, especially if it’s hardwood.

What Capacity Can I Expect from Smaller Homeowner Chippers?

You just need to clean up after pruning the garden shrubs and small trees. Which machine size is right? Buying too small leads to frustration, but overkill wastes money. Let’s look at typical homeowner units.

Smaller electric chippers usually handle branches up to 1.5-2.5 inches (4-6.5 cm). Small gasoline-powered chippers typically manage 2-3 inches (5-7.5 cm), with some reaching 4 inches (10 cm).

These machines are designed for light-duty yard work:

Electric Chippers

• Capacity: Generally 1.5 to 2.5 inches (approx. 4 to 6.5 cm).
• Power: Lower wattage (e.g., 1500W – 2500W).
• Pros: Quieter, lighter, no fuel/fumes, easy start, good for small debris and leafy material (often have shredder function).
• Cons: Limited power for thicker/harder wood, restricted by cord length.
• Best For: Light pruning debris, flower stalks, thin branches in small yards with convenient power access.

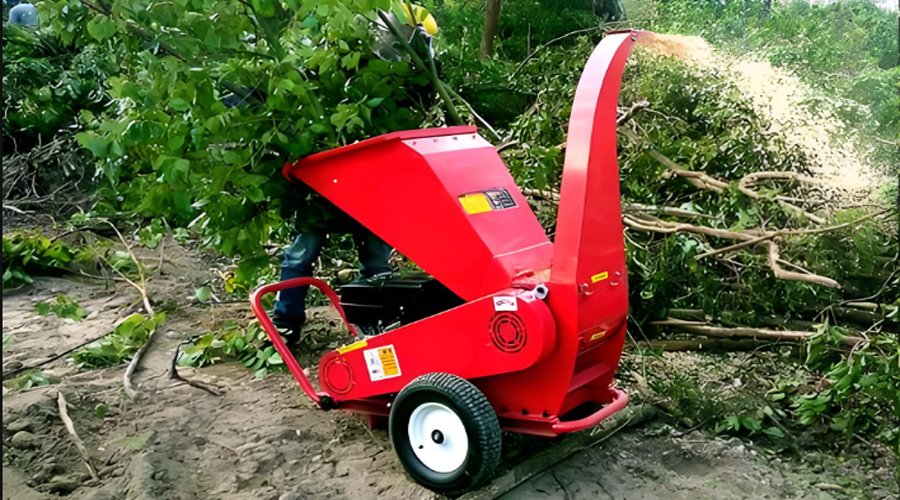

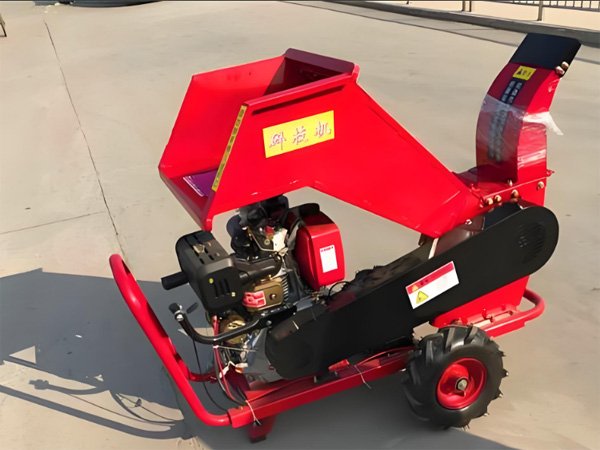

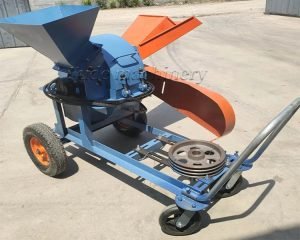

Small Gasoline Chippers

• Capacity: Typically 2 to 3 inches (approx. 5 to 7.5 cm), some up to 4 inches (10 cm).
• Power: Small engines (e.g., 5-7 HP).
• Pros: More powerful than electric, portable (no cord), better for slightly thicker branches and higher volumes.
• Cons: Noisier, require fuel/oil, more maintenance.
• Best For: Average suburban yards, handling moderate pruning (branches up to wrist-thick), processing leaves and twigs efficiently.

Key Takeaway: Homeowner models are primarily for branches you can easily handle by hand, roughly up to the thickness of your wrist or slightly larger for the gas models. Don’t expect them to tackle substantial limbs.

How Thick Can Professional and Industrial Wood Chippers Handle?

Your job involves clearing large properties, managing forests, or processing wood for biomass or pulp. Undersized equipment kills productivity. You need machines built for serious volume and size.

Professional tow-behind chippers typically handle 6 to 12 inches (15-30 cm), some larger models up to 18 inches (45 cm). Heavy industrial chippers can process logs exceeding 20 inches (50 cm) or even whole trees.

These machines are in a different league, built for power and throughput:

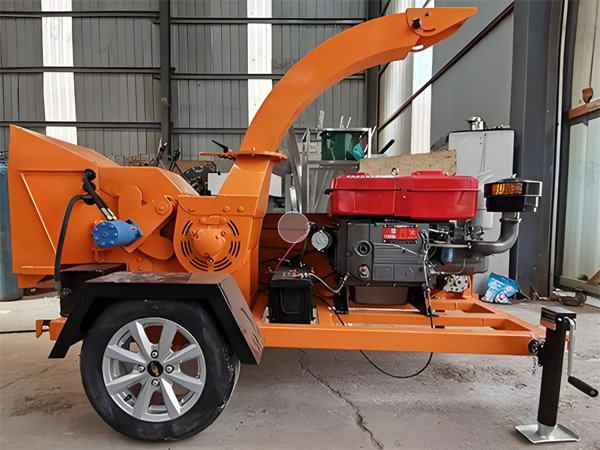

Professional Tow-Behind / Self-Propelled Chippers

• Capacity: Commonly 6 inches (15 cm) to 12 inches (30 cm), with larger units reaching 18 inches (45 cm).
• Power: Substantial gasoline or diesel engines (e.g., 25 HP to 100+ HP).
• Features: Almost always feature hydraulic feed rollers that automatically pull material in, greatly increasing efficiency and safety. Robust construction for daily use. Disc or drum designs available.
• Users: Arborists, landscaping companies, municipalities, large property owners, orchards, small forestry operations. These are the workhorses for significant tree and brush cleanup.

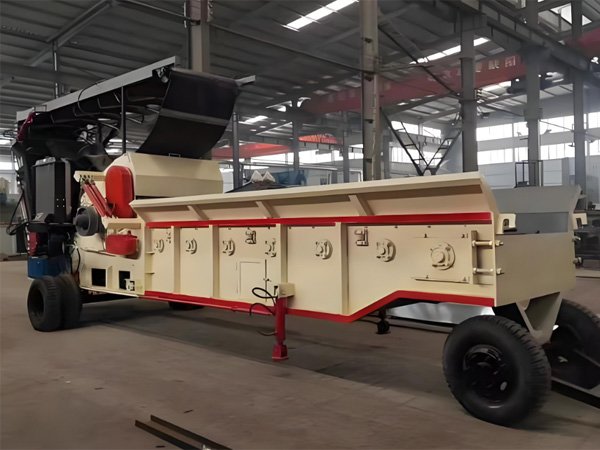

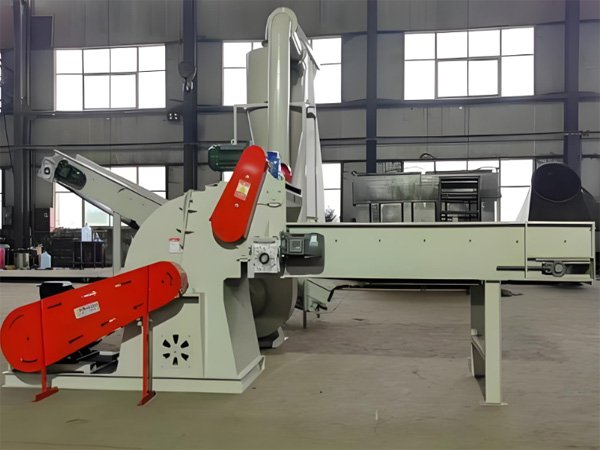

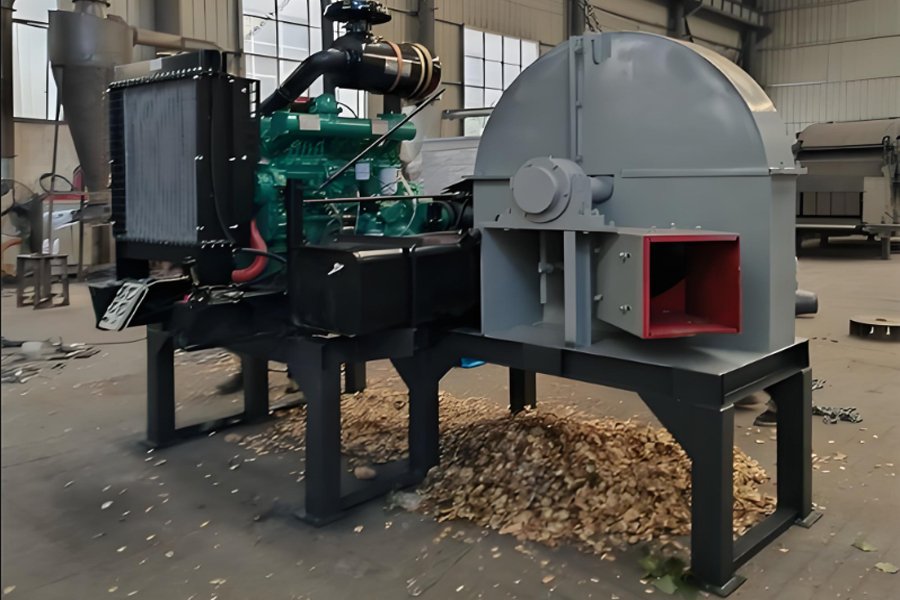

Large Industrial Chippers

• Capacity: Often starting at 20 inches (50 cm) and going much higher, capable of processing entire tree trunks.
• Power: Very powerful diesel engines or large electric motors (hundreds of HP).
• Design: Usually heavy-duty Drum Chippers, often stationary or mounted on heavy trucks/trailers. Designed for continuous, high-volume processing.
• Users: Forestry logging sites, biomass power plants, pulp and paper mills, large wood recycling facilities. These are built for maximum throughput and durability in demanding industrial environments.

Key Takeaway: If you regularly handle wood thicker than your arm or need to process large volumes quickly, you need to step up to professional-grade equipment. The difference in power, construction, and features like hydraulic feed is substantial.

What Really Determines a Chipper’s Cutting Thickness Besides the Opening?

You see a chipper with a large feed opening and assume it can handle wood that fits. But feeding it thick hardwood might stall it completely. The opening size is only part of the story.

Engine Power (HP/kW) is the most critical factor. Chipper design (Disc vs. Drum), wood type (hardwood vs. softwood), and wood condition (dry vs. green, clean vs. dirty) also significantly impact actual capacity.

Let’s break down the real limiting factors:

Factor	Impact on Actual Chipping Capacity	Notes
Power (HP/kW)	Dominant Factor. More power = ability to maintain cutting speed & torque under load.	Needed to overcome resistance of thick/hard wood. Underpowered machines stall.
Chipper Design	Disc: Often produces more uniform chips. May need more flywheel momentum for tough spots.	Drum: Often more aggressive feed, better torque transfer, handles larger/mixed material well.
Infeed Opening	Only determines the maximum physical size that can enter the chipper throat.	Does NOT guarantee the machine has the power to chip wood that large!
Wood Type	Hardwoods (oak, maple) require much more power than Softwoods (pine, fir).	Dry, seasoned hardwood is particularly tough. Reduce expected capacity.
Wood Condition	Green/Wet Wood: Generally chips easier (softer fibers).	Very Dry Wood: Harder, more resistance. Dirty/Gritty Wood: Kills blade sharpness fast!
Blade Sharpness	Dull blades drastically reduce efficiency and effective capacity, increase strain on the machine.	Regular maintenance is crucial for performance.

Key Takeaway: Don’t be fooled by just the feed opening size. Power is paramount. Always consider the type and condition of wood you’ll be chipping most often when evaluating a machine’s true capability. A chipper rated for 6 inches of pine might struggle with 4 inches of dry oak.

How Do I Choose the Right Chipper Capacity for My Needs?

You understand the factors, now how do you pick the right size? Choosing wrong is expensive. Undersize means constant struggle; oversize means wasted investment. Let’s find the sweet spot.

Assess the thickest wood you regularly process, then choose a chipper with a maximum capacity at least 20-30% higher than that. Also consider your budget, usage frequency, and required features.

Follow these steps for a smart choice:

1. Honestly Assess Your Material:
   • What is the typical diameter of the branches/logs you need to chip most often?
   • What is the absolute thickest material you encounter regularly (not just that one freak log)?
   • What type of wood is it mostly (softwood, hardwood, mixed)?
2. Build in a Buffer (Crucial!):
   • Never choose a machine where your thickest regular material matches its maximum rating. You’ll constantly strain the machine.
   • Rule of Thumb: Select a chipper rated for at least 20-30% larger diameter than your typical maximum requirement. For example, if you regularly chip 4-inch hardwood, look for a machine rated for at least 5 or 6 inches.
   • Why? This provides reserve power, reduces wear and tear, improves efficiency, increases safety, and extends machine life.
3. Consider Budget and Use Frequency:
   • Occasional Home Use: An entry-level electric or small gas model might suffice if needs are minimal.
   • Regular / Heavy Home Use / Small Business: A robust gasoline chipper with adequate buffer capacity is usually more cost-effective long-term due to higher efficiency and durability.
   • Professional / Daily Commercial Use: Invest in a professional-grade tow-behind or self-propelled unit sized appropriately (with buffer) for the job. Durability, reliability, and throughput are key.
4. Evaluate Other Performance Factors:
   • Throughput: How quickly does it process material (often cubic meters/hour)? Important for commercial use.
   • Portability: Hand-push, towable, self-propelled? Match your site needs.
   • Feed System: Manual push feed vs. Hydraulic Feed Rollers. Hydraulic feed is vastly superior for efficiency and safety, standard on almost all professional machines.
   • Noise: Consider local restrictions or working environment.
   • Maintenance: How easy is it to access and change knives/blades?

Thinking through these points leads to a much better investment.

Is it Critical to Respect the Chipper’s Rated Maximum Thickness?

You’ve got that one branch that’s just slightly over the limit. Is it really that bad to force it through? The temptation is there, but the consequences can be severe.

Yes, absolutely critical! Exceeding the rated capacity risks severe machine damage, creates serious safety hazards (like kickback), and is extremely inefficient. Never force oversized wood into a chipper.

Here’s why sticking to the limits is non-negotiable:

Risk of Expensive Machine Damage

Forcing oversized or overly hard wood can cause:

• Stalling/Jamming: The most immediate result.
• Belt Slippage/Breakage: Drive belts can burn up or snap under excessive load.
• Knife/Blade Damage: Edges can chip, crack, or break entirely.
• Damage to Rotor/Drum/Flywheel: Extreme stress can damage bearings, shafts, or the main cutting assembly.
• Engine/Motor Damage: Persistent overload can lead to overheating and catastrophic failure.
  Repairs for these issues can easily cost hundreds or thousands of dollars.

Serious Safety Hazards

• Violent Kickback: Wood forced improperly can be violently ejected back out the feed chute, causing serious injury.
• Machine Instability: Extreme vibration from struggling with oversized wood can make the machine unstable, potentially leading to tipping, especially with smaller units.
• Flying Debris: Broken internal parts can become projectiles.

Terrible Efficiency

Even if the machine slowly chews through the oversized piece, the process is incredibly slow, strains the entire machine, and burns excessive fuel/power. It’s simply not worth it.

How to Be Sure of Capacity

• Read the Operator’s Manual: This is the definitive source for your specific model’s capabilities and limitations.
• Check Machine Labels/Plates: Key specifications are often listed directly on the chipper.
• Consult the Manufacturer/Dealer: Reputable sources like Fude Machinery can provide accurate information.

My final word on this: Safety first, always. Respect the machine’s limits. If you consistently encounter wood larger than your chipper can handle, you need a bigger chipper.

Conclusion: Finding the Right “Appetite” for Your Wood

Choosing the right wood chipper capacity isn’t about finding one magic number. It’s about understanding the range of machines available and honestly matching one to your specific work.

Match the chipper to your wood size, always allowing a capacity buffer. Consider power, design, and your usage needs to select a safe, efficient machine that will serve you well for years.

Don’t just look at the maximum diameter spec. Factor in wood type, condition, your required throughput, and essential features like hydraulic feed for professional use. By carefully considering these points, you can select the perfect Fude Machinery chipper – or any chipper – with the right “appetite” for your wood processing tasks.
