Mobile tree branch crusher

Table of Contents

• New – Crawler type tree branch crusher
• Product characteristics of tracked tree branch crusher
• Mobile tree branch crusher parameters: supports customization
• Working principle of shredder for branches
• Wood crusher: specification introduction
• Scope of application for garden wood crusher
• Woodworking Machinery: Common Q&A
• Crusher for sale: comprehensive recommendations

Product characteristics of tracked tree branch crusher

Crawler type wood crusher is a mobile crushing equipment designed specifically for forestry, landscaping, biomass energy and resource recycling fields, integrating efficient crushing, flexible movement, environmental protection and energy conservation. Its core advantages lie in:

• All terrain adaptability: Equipped with a tracked chassis, it can operate stably in complex terrains such as mountains, wetlands, and muddy roads, breaking through the site limitations of traditional wheeled equipment.
• Efficient crushing capability: Using high-performance blades and intelligent feeding system, it can quickly process materials such as tree trunks, branches, roots, etc. with a diameter of less than 20cm, and the crushing efficiency is increased by more than 30% compared to traditional equipment.
• Environmentally friendly and low consumption design: equipped with a low-noise engine and dust collection device, in compliance with national environmental standards, reducing the impact of operations on the surrounding environment.
• Modular function expansion: supports replacement of discharge screen, can produce wood chips or particles with different sizes of 5-25mm, meeting diversified needs such as biomass fuel, organic fertilizer, papermaking raw materials, etc.

Mobile tree branch crusher parameters: supports customization

Model	FD-6130	FD-6145
Knife roller disc diameter	300MM	500MM
Equipped with power	32HP	R4105ZP
Number of blades	3 moving blades and 1 fixed blade	6 moving blades and 1 fixed blade
feed opening	300*200mm	450*380mm
Discharge system	Free 360 degree rotation and automatic spraying discharge	Free 360 degree rotation and automatic spraying discharge
Capacity	1-2t/h	3-5t/h
Walking form	Foldable hand jack, trailer type	Foldable hand jack, trailer type

There are differences in parameters among different models of tree branch crushers:

• Processing capacity: It is usually expressed in terms of the amount of material processed per hour (such as tons/hour), and the processing capacity of different models varies.
• Grinding fineness: The particle size of the material after grinding directly affects the subsequent processing technology and product application.
• Motor power: The higher the motor power, the stronger the crushing ability of the tree branch crusher, but at the same time, it will also increase energy consumption and operating costs.
• Feed inlet size: The feed inlet size determines the maximum diameter of branches that the branch crusher can handle.
• Rotation angle of discharge port: The rotation angle of the discharge port determines the discharge direction of the crushed material.

Working principle of shredder for branches

The tree branch crusher produced by Fude Machinery adopts hydraulic forced feeding, which can forcibly pull loose branches into the crushing chamber for crushing. The discharge port adopts advanced rapid adjustment device, which can be quickly and freely adjusted 360 degrees.

The discharge height can also be quickly adjusted through the height adjustment plum blossom handle. When towing, the hand cranked support legs can be raised and the trailer ring can be hung into the trailer hook, and then the hand cranked support legs can be folded up, making the operation very convenient and fast.

Wood crusher: specification introduction

---

Branch crushers can be classified into various types according to different classification criteria, such as electric branch crushers and diesel branch crushers based on their power sources;
According to the mode of movement, it can be divided into wheeled branch crushers and tracked branch crushers;
According to processing capacity, it can be divided into small branch crushers and large branch crushers.

Small garden crusher

A simple small grinder, suitable for garden use, used for breaking tree branches, repairing rattan, and crushing small amounts of materials.

Mobile tree branch crusher

Mobile crushers are widely used in fields such as landscaping, orchard management, forestry logging, and processing of edible mushroom culture media. They can quickly and efficiently break down tree branches and other materials into smaller fragments, facilitating subsequent processing and utilization.

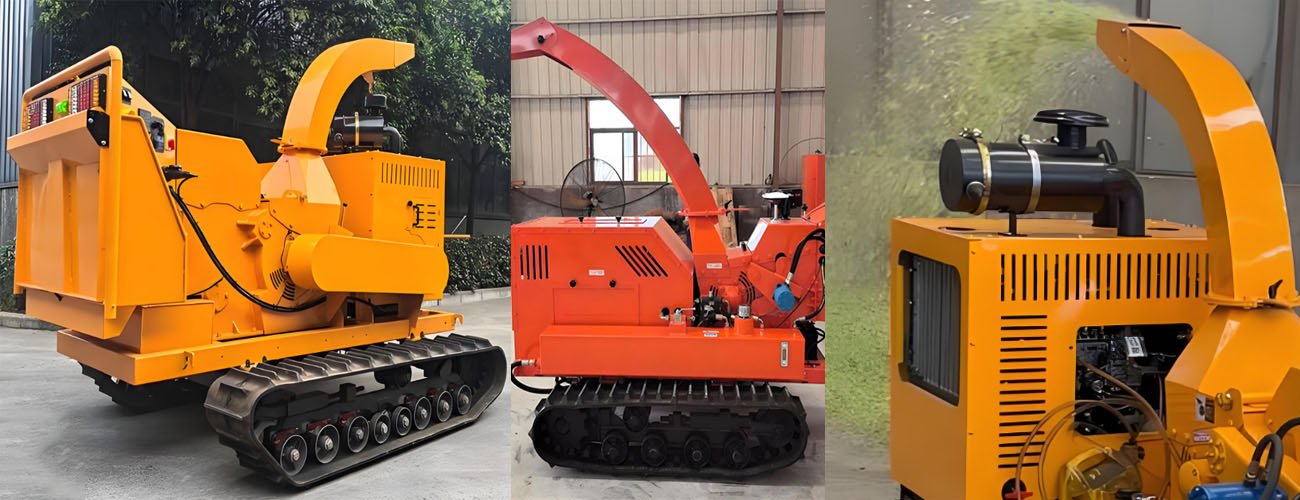

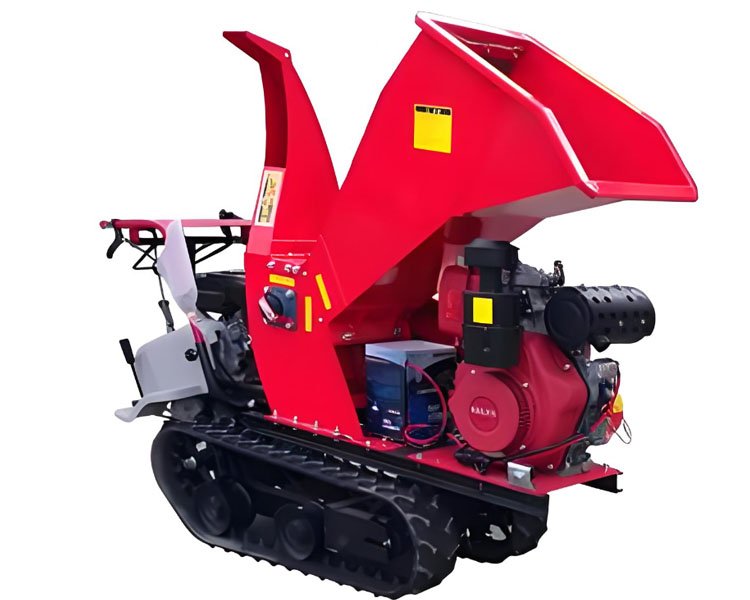

Crawler type tree branch crusher

Crawler type wood crusher is a mobile crushing equipment designed specifically for forestry, landscaping, biomass energy and resource recycling fields, integrating efficient crushing, flexible movement, environmental protection and energy conservation.

Scope of application for garden wood crusher

• In the field of landscaping:
• Garden pruning waste disposal: Green plants in public places such as parks, squares, and streets need to be pruned regularly, and a large amount of waste such as branches and leaves will be generated during the pruning process. The use of a branch crusher can promptly crush and dispose of these waste materials, reducing their accumulation and facilitating subsequent transportation and disposal.
• Resource recycling: Crushed materials can also be used as organic fertilizers or coverings to improve soil, promote plant growth, and achieve resource recycling.
• Forestry field:
• Waste disposal from forestry operations: In forestry production activities such as forest tending and timber harvesting, a large amount of tree branches, twigs, and other residues are generated. If these residues are not handled properly, they can not only cause resource waste, but also pose safety hazards such as forest fires. By using a branch crusher, these residues can be crushed and processed for the production of biomass fuel, papermaking raw materials, etc., which not only improves resource utilization but also reduces production costs.
• Waste resource utilization: The crushed materials can also be used to pave forest roads, bury mines, etc., achieving the resource utilization of waste.
• In the field of agriculture:
• Agricultural production waste disposal: In agricultural production sites such as orchards and farmland, pruning fruit trees and clearing weeds in farmland will generate a large amount of waste such as branches and straw.
• The use of industrial tree branch crushers can crush and treat these wastes as organic fertilizers for returning to the field, which not only increases soil fertility but also reduces the use of chemical fertilizers, which is beneficial for the sustainable development of agriculture.

Woodworking Machinery: Common Q&A

Question 1: Can a branch shredder handle wet, green leaves?
Yes. In fact, they are designed for it. Unlike some chippers that can get clogged by wet leaves, the hammer mechanism in a shredder processes mixed green material very effectively.

Question 2: How much maintenance is required?
The main maintenance tasks are checking engine oil (for diesel models), greasing bearings, and inspecting the hammers and blades for wear. The hammers and blades are made from hardened steel but will eventually need to be rotated or replaced. With heavy use, you should inspect them weekly.

Question 3: What is the price range for an industrial branch shredder?
The price varies depending on the size, power source, and capacity. A small, electric farm model will be much less expensive than a large, diesel-powered mobile unit for commercial land clearing. As a factory-direct manufacturer, we offer very competitive pricing. Contact us with your requirements for a specific quote.

Question 4: Can it shred materials other than wood?
Yes. Our branch shredders are very versatile. They can effectively process corn stalks, coconut husks, straw, and other fibrous agricultural waste, making them a multi-purpose machine for many farms.

Crusher for sale: comprehensive recommendations

A branch shredder is an essential piece of equipment for any business dealing with green waste. It is a powerful tool that reduces volume, cuts disposal costs, and creates valuable end-products like mulch and compost.

When choosing a machine, your decision should be guided by your primary use case: a diesel mobile unit for on-site work, or a stationary electric model for a central processing yard. By investing in the right machine, you can turn a costly problem into a profitable part of your operation.

The next step is to analyze your specific needs. How much material do you process daily? What is your main type of green waste? Once you have these answers, we can help you configure the perfect branch shredder for your business.
