Multifunctional wood crusher high-power and efficient template log crusher stump/pallet Chipper
Model | 1000 |
power(kw) | 90 |
Production (t) | 8 |
Weight (t) | 6.5 |
Using materials | Poplar, pine, bamboo, template |
Table of Contents
- Multifunctional wood crusher high-power and efficient template log crusher stump/pallet chipper
- Introduction to Large Wood Crusher
- Video operation effect of large-scale wood crusher
- Working principle of large-scale wood crusher
- Performance characteristics of template crusher
- Scope of use of wood crusher
- Maintenance and upkeep of wood crusher
- Usage Cases of Template Crusher
- How to choose a large wood crusher?
Introduction to Large wood crusher
The comprehensive crusher is a special equipment for biomass power plant fuel storage. The crushing raw materials are mainly all kinds of trees, small diameter trees, wood cutting residues (such as branches, twigs, etc.) and wood processing residues (such as veneer, Flat noodles, log core, waste veneer, etc.). It can also crush non wood raw materials (such as hemp stems, reeds, bamboo, corn straw, cotton firewood, etc.). This machine has the characteristics of wide adaptability to raw materials, high output, reasonable structure, easy operation, safety and reliability, and convenient maintenance.
![Large wood crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/图8-5.jpg)
![Large wood crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/图9-3.jpg)
Video operation effect of large-scale wood crusher
Technical advantages of wood crushers:
- The comprehensive crusher can crush large volumes of wood with nails. It can also crush waste doors and windows, waste furniture, etc. It can be loaded with a grabbing machine, with high automation level. The materials can be directly grabbed and entered into the conveyor platform for crushing. The production process only requires one person to operate the grabbing machine. Save manpower and resources.
- The comprehensive crusher adopts chain plate conveyor for feeding. Can make feeding smoother. Significantly increase production capacity.
- The Template crusher is not easily clogged during the production process, with less dust and low noise.
- The operation mode of the wood crusher is flexible. If electricity is not convenient, diesel engines can be used to drive and wheel traction can be used according to user needs, making production convenient and fast. The device installation is simple., It can be produced directly on a stable ground, with stable performance and high yield.
Working principle of large-scale wood crusher
Install flying knives or tiger claws on the silver knife, use specially manufactured high-strength bolts, and fix them on the knife roller through pressure blocks; Cutting or crushing the raw materials, qualified wood chips fall into the conveyor belt through the holes in the sieve at the bottom of the knife roller and are brought into the material bin or the next stage. Wood chips that do not meet the specifications are cut again until they are qualified.
Performance characteristics of template crusher
1、Fixed, mobile, diesel engines, motors, etc. can be configured according to requirements
2、For the template design of construction sites, fearless metal items such as iron nails and wires are transported and fed using chain plates
3、The feeding speed can be automatically adjusted according to the load of the main motor. Three types of blades, namely the seven type blade, the one type blade, and the centrifugal blade, work together
4、Powerful crushing chamber cover adopts hydraulic opening
5、Easy to maintain and replace blade remote control, easy to operate, one person can work
![Performance characteristics of template crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/详情1.jpg)
![Performance characteristics of template crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/详情2.jpg)
![Performance characteristics of template crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/8.jpg)
Scope of use of wood crusher
The wood crusher is mainly used to crush various wood fiber materials and crops such as waste boards, wood chips, wood, wood blocks, branches, leaves, bark, furniture scraps, wood bran, bamboo powder, chestnut skin powder, square wood, corn cob, straw, etc
![Material picture of wood crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/物料配图.jpg)
![Material diagram of wood chipper](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/物料图2.jpg)
Maintenance and upkeep of wood crusher
1. The bearings of the host bear all the load of the machine, so good lubrication has a great impact on the bearing life, which directly affects the service life and operating rate of the machine. Therefore, it is required that the injected lubricating oil be clean and sealed well.
2. Each fastening screw is prone to loosening and must be checked regularly. If there is any looseness, it should be tightened in a timely manner
3. Pay attention to checking the wear level of easily worn parts and promptly replace worn parts.
4. Regularly add lubricating oil to the friction position to ensure mechanical performance and lifespan.
5. If the bearing oil temperature rises, it should be stopped immediately to check the cause and eliminate it,
6. If there is any impact sound during the operation of the rotating gear, it should be immediately stopped for inspection and eliminated
7. After the machinery is not in use, it should be placed indoors and the sawdust inside the machinery should be cleaned to avoid affecting future use and production.
Usage Cases of Template Crusher
![On site use of wood crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/场地图1.jpg)
On site use of wood crusher
![On site use of wood crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/场地图2.jpg)
On site use of wood crusher
![On site use of wood crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/图10-3.jpg)
![Template crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/118.jpg)

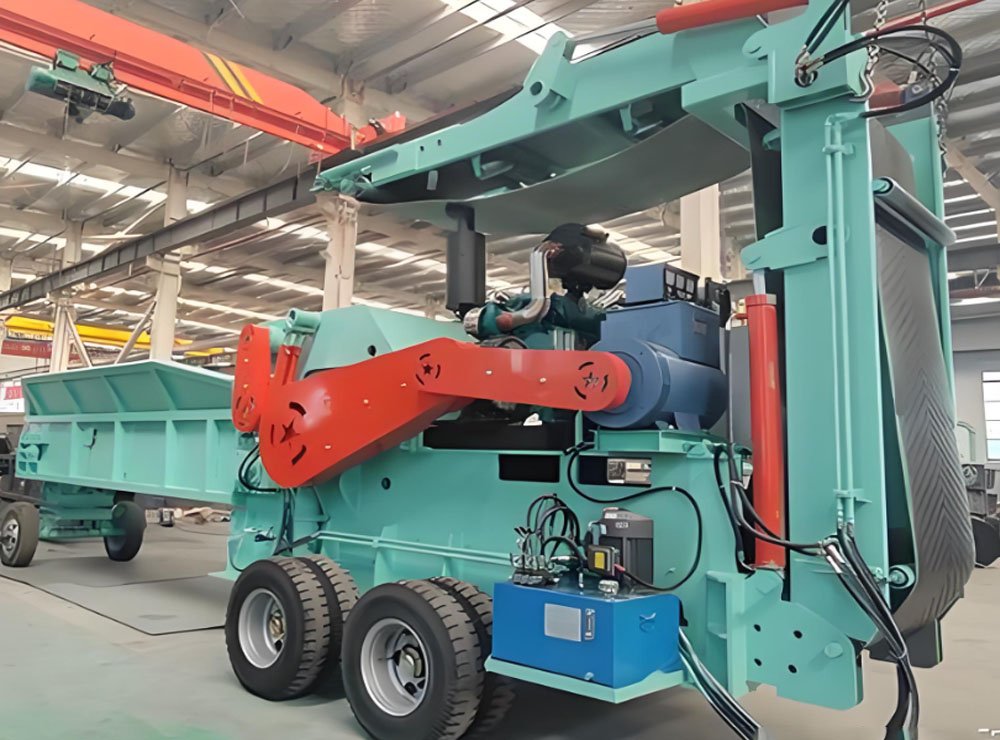

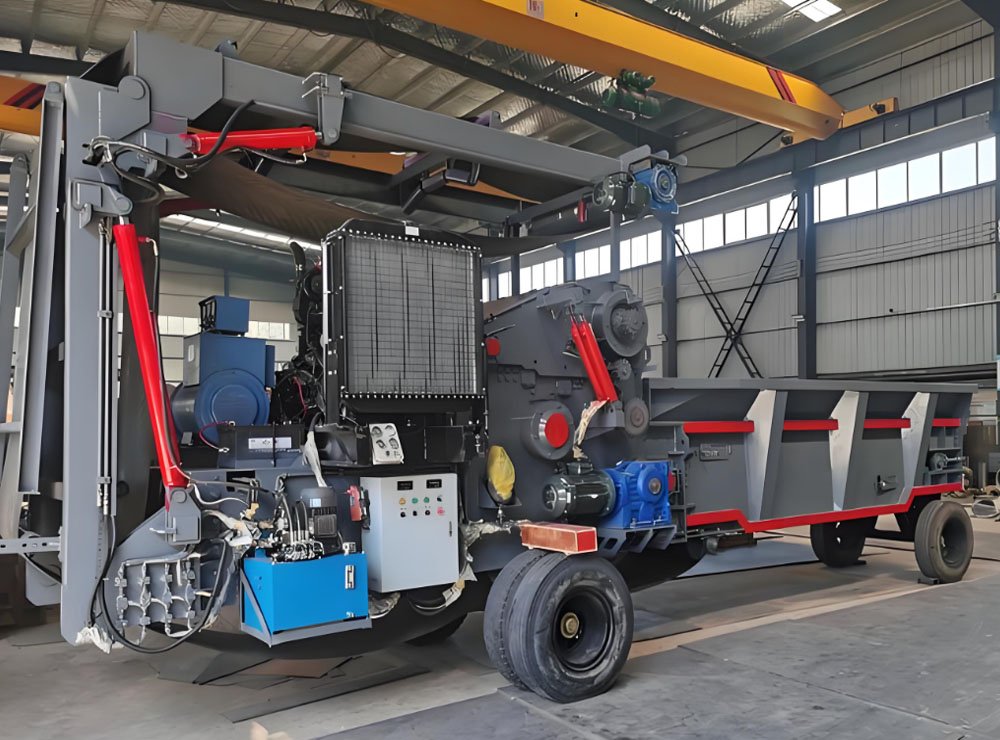

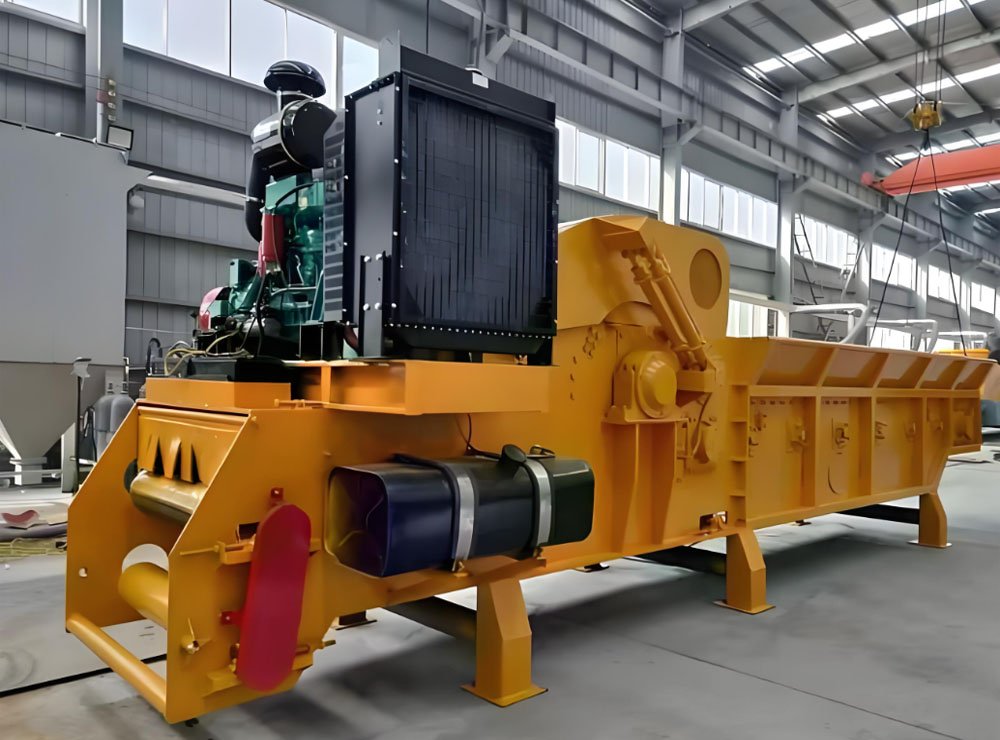

How to choose a large wood crusher?
The comprehensive crusher adopts a chain plate intelligent feeding system, which can automatically adjust the feeding speed according to the load of the main motor. The ideal equipment for biomass power plants is to operate the machine at full load and avoid no-load operation, making feeding smoother and significantly improving production capacity. Using a grabbing machine for feeding, it can be used for various types of bio power plant fuels such as templates, straw, and tree branches. The advantage of this equipment is that the feeding port is high, which can be used for grabbing machine feeding (saving labor). It can also be operated by a remote control according to requirements.
![Template crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/图2-6.jpg)
![Template crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/图3-2.jpg)
![Template crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/图4-5.jpg)
![Template crusher](https://www.fudewoodcrusher.com/wp-content/uploads/2024/04/图1-5.jpg)
