What Exactly is a Biomass Pellet Machine?

Got waste biomass piling up? Struggling with disposal costs? Discover the machine that transforms it into profitable fuel pellets.

A biomass pellet machine is equipment that compresses raw materials like wood chips, sawdust, or straw. It uses high pressure. This process creates dense, uniform pellets used mainly as fuel.

But how does this simple idea work in practice? What really goes into making quality pellets efficiently? Let’s look closer at what you need to know.

Is It Just About Squeezing Materials Together?

Think pelletizing is simple compression? Missing the key science? Learn the real process behind making strong, quality pellets effectively.

No, it’s not just squeezing. Pelletizing uses heat and pressure. This activates the natural lignin binder in biomass. It also interlocks fibers, creating dense, durable pellets.

Many people think a pellet machine just presses loose material together. But the real process is more complex. It involves “thermoplastic forming” and “physical crosslinking.” Let me explain what this means for you.

The Role of Lignin

Lignin is a natural substance found in wood and other plant materials. When biomass enters the pellet machine, it faces high pressure and temperature. This heat makes the lignin soften. It becomes sticky, like a natural glue. This softened lignin helps bind the biomass particles together.

Fiber Interlocking

At the same time, the high pressure forces the plant fibers within the biomass to rearrange. They get pushed very close together and interlock. This creates a dense, physically strong structure. It’s not just glued; it’s physically meshed.

Understanding this helps you choose your raw materials. The amount and type of lignin are very important for good pellet quality. Not all biomass materials are equally easy to pelletize directly.

Material Factor	Implication for Pelletizing	Example Solution
High Lignin Content	Generally good binding, forms strong pellets.	Wood waste, sawdust
Low Lignin Content	May result in weak or crumbly pellets.	Add binder, pre-treat material
Specific Lignin Type	Some lignins activate at different temperatures.	Adjust machine operating temperature

Some materials, like certain types of agricultural straw, might have lower lignin content. They might need extra help. You might need to add a natural binder. Or you might need special pre-treatment steps to make them suitable for pelleting.

Why Does Raw Material Consistency Matter More Than Variety?

Processing various wastes sounds great? Facing production issues? Uniformity might be your overlooked key to success in pellet making.

Consistent raw material size, moisture, and density are crucial. Variations cause feeding problems, die blockages, poor pellet quality, and unstable production. Uniformity is key.

While our pellet machines can handle many types of biomass waste, stability in production comes from consistency. The physical and chemical properties of the raw material you feed in batch after batch need to be very similar. This is more important than the machine being able to handle different types of material over its lifetime.

Impact of Size Variation

If the material particles are not a uniform size, problems arise. Larger pieces can block the feed system or the small holes in the pellet die. Very fine powder can cause issues too. It might pass through too quickly or affect how the material flows into the die. Consistent sizing, usually achieved through good crushing and screening, is essential. We typically recommend input sizes between 3mm and 8mm, depending on your final pellet diameter.

The Enemy: Moisture Fluctuation

Moisture content is perhaps the single most critical factor. If the moisture level changes too much:

• Forming Issues: Too dry, and the pellets won’t bind well (lignin needs some moisture to activate properly with heat). Too wet, and steam can build up in the die, blocking it or creating weak, swollen pellets.
• Energy Use: Drying overly wet material in the pellet machine itself wastes a lot of energy.
• Pellet Quality: Inconsistent moisture leads to inconsistent pellet density and durability.

Top pellet fuel plants understand this. It’s an industry secret that they often invest heavily, sometimes 40% to 50% of their total project cost, just in the raw material preparation stages. This includes crushing, screening, and especially drying, to ensure absolute consistency before the material even reaches the pellet machine.

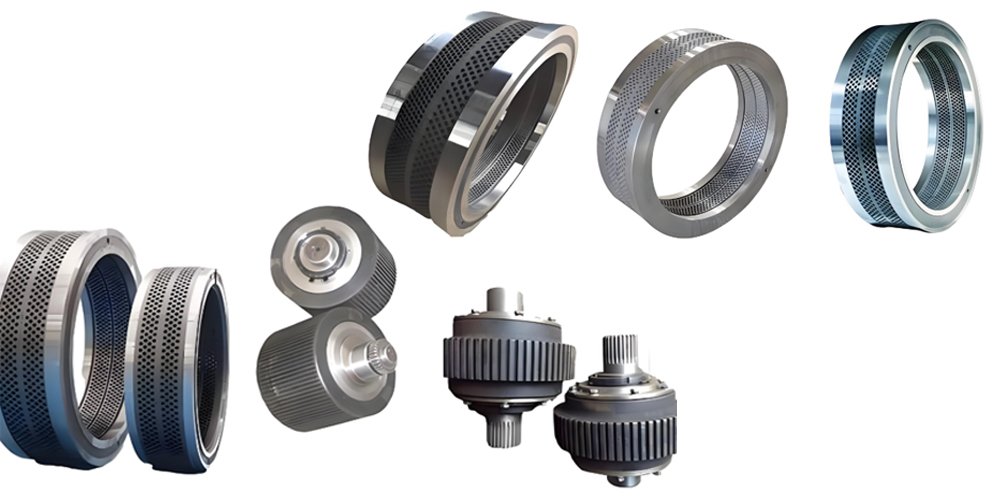

Are Die and Roller Matching More Art Than Science?

Using factory settings for die and rollers? Still getting poor results? Fine-tuning based on experience is often needed for the best outcome.

Yes, matching dies and rollers often needs fine-tuning. Manufacturer recommendations are a start. Experienced operators adjust settings based on material, moisture, machine sounds, and pellet output.

We, as manufacturers, provide recommendations for the compression ratio of the die. This ratio compares the effective length of the die hole to its diameter. It’s a key parameter. However, this is just a starting point. Finding the absolute best settings often requires skill and experience.

Beyond the Manual

The ideal compression ratio and the precise gap between the rollers and the die depend heavily on your specific situation:

• Raw Material: Different woods, straws, or shells behave differently under pressure.
• Moisture Content: Even small changes in moisture can require adjustments.
• Ambient Conditions: Temperature and humidity in your facility can play a role.

Experienced operators learn to “read” the machine. They listen to the sound it makes. They monitor the electrical current draw of the main motor. They watch the quality and consistency of the pellets coming out. Based on these observations, they make small adjustments to optimize performance.

Ring Die Pellet Machines

• Design: The die is a vertical ring with holes. Rollers press material outwards through the holes from the inside.
• Pros: Generally better for large-scale, continuous production. Higher efficiency, especially with harder materials like wood. Produces smoother, denser pellets typically.

Flat Die Pellet Machines

• Design: The die is a flat, horizontal disc with holes. Rollers press material downwards through the holes.
• Pros: Simpler structure, lower initial cost, easier maintenance. Often better for softer, fluffier, or stickier materials (like some grasses, feed formulations, or organic fertilizers). Good for smaller scale operations.

Avoiding the Selection Mistake

Don’t choose a machine based only on price or claims of universality. Carefully consider:

1. Your primary raw material: Is it mostly wood, straw, grass, etc.?
2. Your required output: How many tons per hour or day do you need?
3. Your budget: Consider both initial cost and expected running costs.
4. Pellet quality requirements: What standards do your pellets need to meet?

Choosing the right type and configuration for your specific needs is crucial for success.

Understanding Power Use

• Main Motor: The rated power (e.g., 90kW, 110kW, 160kW) is a key specification. However, the actual power drawn during operation varies. It depends heavily on the type of raw material (harder materials need more power), its moisture content, the compression ratio of the die, and the overall condition of the machine (e.g., worn rollers/die increase friction).
• Auxiliary Equipment: Don’t forget the power needed for the rest of the line. This includes feeders, conditioners (if used), the cooling system (pellets come out hot), screening equipment (to remove fines), conveyors, and the dust collection system. The total energy consumption of these supporting systems can be significant.

Different Markets, Different Needs

• Industrial Boilers: Users like power plants or large factories primarily focus on consistent heat output (calorific value) and ash content. Ash handling systems can often manage higher ash levels than residential systems, but consistency is important. Chlorine content can also be a concern due to boiler corrosion.
• Residential Heating (Stoves/Boilers): Homeowners using pellet stoves demand high quality. Key factors include:
  • Low Ash Content: Minimizes cleaning frequency.
  • High Ash Melting Point: Prevents “clinkers” or hard deposits from forming in the stove.
  • Uniform Size and High Durability: Ensures reliable feeding and prevents jamming.
  • Low Fines (Dust): Cleaner handling and burning.
• Export Markets (e.g., Europe): These often require certification to strict standards like ENplus (A1 or A2 grades) or DINplus. These standards specify limits for dimensions, mechanical durability, fines, ash content, moisture, heating value, and trace elements.

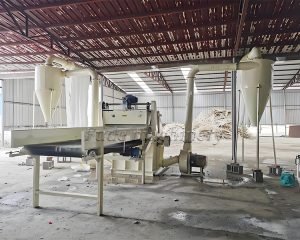

Isn’t the Crusher Just an Accessory for the Pellet Machine?

Think the pellet machine is the only star? Underestimating the crusher’s role? Proper material preparation is absolutely essential for good pelleting.

No, the crusher (like a wood crusher, chipper, or hammer mill) is essential. It prepares the raw material to the correct, uniform size needed for the pellet machine, typically 3-8mm.

The pellet machine cannot handle large chunks of wood, branches, or long strands of straw directly. It requires raw material that has already been reduced to a suitable, consistent size. Therefore, crushing or grinding equipment is not just an optional add-on; it’s a necessary first step in most biomass pellet production lines.

Why Size Matters Before Pelleting

Pellet machines work by forcing material through small holes in a die. For this to work efficiently and produce good pellets:

• Maximum Size: The incoming material particles must be smaller than the die holes. If they are too large, they will block the holes, stopping production. A general rule is that the raw material size should be about 2/3rds or less of the pellet die hole diameter.
• Uniformity: A consistent particle size distribution is crucial. If you have a mix of very large and very small particles (fines), it can lead to uneven flow through the die, variations in pellet density, and increased wear on the machine. Too many fines can also hinder the binding process or cause feed issues.

Choosing the Right Crusher

The type of crusher you need depends on your initial raw material:

• Wood Chippers (Disc or Drum): Best for reducing logs and large branches into wood chips (typically 10-30mm).
• Hammer Mills: Excellent for further reducing wood chips, sawdust, shavings, agricultural residues (like straw or corn stalks) into the fine, sawdust-like consistency (e.g., 3-8mm) needed for pelleting. They use swinging hammers to pulverize the material against a screen.
• Wood Crushers / Shredders: Can handle a wider range of inputs, including wood waste with nails (like pallets or construction debris), roots, or thicker branches, often performing a primary reduction before a hammer mill.

The performance of your entire pellet line starts with effective and consistent size reduction. Investing in the right crushing equipment is vital.

Essential Maintenance Tasks

• Lubrication: This is perhaps the most critical routine task. Bearings, especially the main shaft and roller bearings, require specific types of high-temperature grease applied at regular intervals (often daily or even multiple times per shift for key points). Using the wrong grease or skipping lubrication drastically shortens bearing life.
• Inspection: Regularly check for wear on the die and rollers. Inspect belts or gear drives for proper tension and condition. Listen for unusual noises. Check fasteners for tightness.
• Adjustment: The gap between the rollers and the die needs periodic checking and adjustment as parts wear. Maintaining the correct gap is vital for efficiency and pellet quality.
• Cleaning: Keep the machine and surrounding area clean. Biomass dust can be abrasive and a fire hazard. Ensure cooling fans and vents are clear.
• Parts Replacement: Worn dies and roller shells must be replaced promptly. Running with excessively worn parts reduces efficiency, increases energy consumption, produces poor pellets, and can damage other components.

Why Does Designing a Full Production Line Need a Holistic View?

A complete pellet line needs integrated planning for smooth, efficient operation.

Designing a full pellet production line requires a holistic approach. You must match capacities of different machines (e.g., dryer to pellet mill) and carefully plan material flow, automation, and buffers.

Buying a high-quality biomass pellet machine is important. But it’s only one piece of the puzzle. To have an efficient and profitable operation, you need to think about the entire production line as an integrated system. Simply buying individual machines and connecting them might lead to problems.

Key Considerations for Line Design

• Material Flow: How will the material move smoothly from raw storage, through crushing, drying, pelleting, cooling, screening, and finally to storage or bagging? Bottlenecks need to be avoided.
• Capacity Matching: The processing capacity (e.g., tons per hour) of each machine must be balanced. For example, your dryer must be able to supply consistently dry material at the rate your pellet machine can process it. Your crusher must feed the dryer appropriately. If one machine is too slow, it creates a bottleneck. If it’s too fast, it sits idle.
• Automation and Control: How will the system be controlled? Integrated control systems can optimize performance, reduce labor needs, and provide important operational data.
• Buffer Storage: Small silos or bins between stages (e.g., after drying, before pelleting) can help smooth out minor variations in flow rate and allow parts of the line to continue running briefly if another part stops temporarily.
• Layout and Space: Does the physical layout allow for efficient material flow and safe access for operation and maintenance?
• Flexibility: Does the design allow for potential future changes in raw materials or capacity needs?

Seek Experienced Guidance

Trying to piece together a line yourself from different suppliers without a deep understanding of the interactions can be risky. It often leads to inefficiencies, unexpected problems, and lower overall output.

We strongly recommend working with an experienced supplier, like Fude Machinery, who can offer a complete, customized solution. We look at your specific raw materials, required output, quality standards, and site conditions. We then design an integrated line where all the components work together efficiently and reliably. This holistic approach is usually more effective and cost-efficient in the long run than trying to self-integrate individual machines.

Conclusion

Biomass pellet machines are powerful tools. They turn various waste materials into valuable, usable fuel. Understanding the technology, materials, and operational factors helps ensure your success.

Zhengzhou Fude Machinery integrates research and development, manufacturing, and sales. We have a professional technical team that deeply understands customer needs, recommends and answers equipment questions for customers, and teaches operational techniques. If you want to learn about the processing industry, please consult us.
